Features
- Fast and reliable connection
- Twisted pairs with bright color for easy recognition
- Ripcord and foot-mark for convenient use
- Smooth jacket for easy pulling in tight space
- Multiple colours available
Applications
- Computer network cabling
- Broadband network communication
- Digital ISDN and ATM 155Mbps network
- Ethernet network
- Audio and data transmission
Specifications
| Cat6 UTP Network Cable: | |

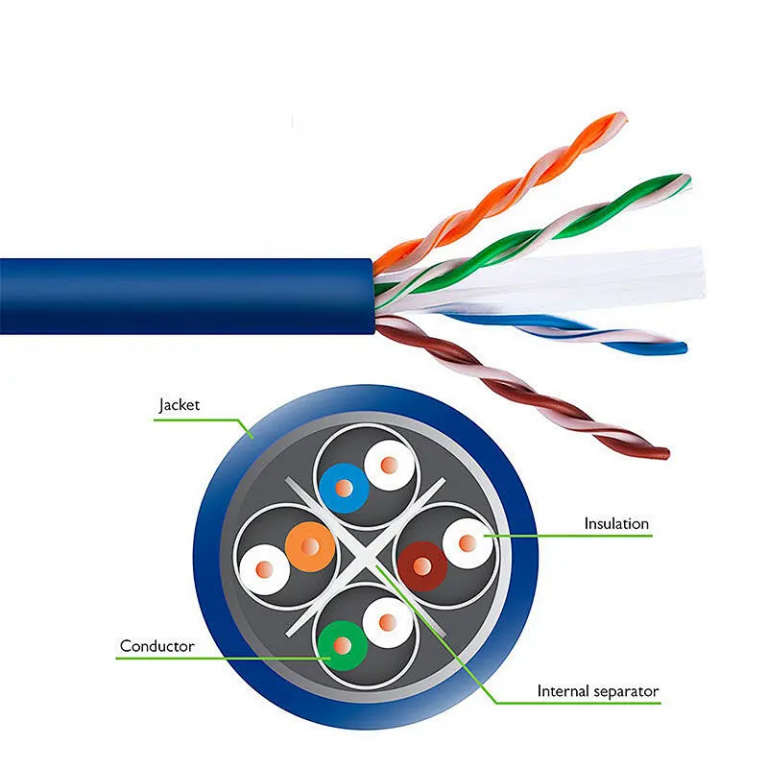

| Structure | 4P Twisted Pair |
| Conductor | Solid or Stranded Bare Copper/CCA |
| Conductor Size | 23AWG (24AWG 25AWG Available) |
| Insulation | HD-PE |
| Jacket | PVC or LSZH (Rated Temperature: -20℃-75℃) |
| Flame Retardancy Standard | CM CMR CMP |
| Impedance | 100±15%Ω (Frequency: 250MHZ) |
| Reference Standard | ISO/IEC 11081 ANSI/TIA/EIA-568B UL444 |
|
Cat6 STP Network Cable: |
|
| Structure | 4P Twisted Pair + Drain Wire |
| Conductor | Solid or Stranded Bare Copper/CCA |
| Conductor Size | 23AWG (24AWG 25AWG Available) |
| Insulation | HD-PE |
| Shielded | AL-Foil + Mylar Coverage |
| Jacket | PVC or LSZH (Rated Temperature: -20℃-75℃) |
| Flame Retardancy Standard | CM CMR CMP |
| Impedance | 100±15%Ω (Frequency: 250MHZ) |
| Reference Standard | ISO/IEC 11081 ANSI/TIA/EIA-568B UL444 |
| Cat6 SFTP Network Cable: | |
| Structure | 4P Twisted Pair + Drain Wire |
| Conductor | Solid or Stranded Bare Copper/CCA |
| Conductor Size | 23AWG (24AWG Available) |
| Insulation | HD-PE |
| Shielded | AL-Foil + Mylar + Braid Coverage |
| Jacket | PVC or LSZH (Rated Temperature: -20℃-75℃) |
| Flame Retardancy Standard | CM CMR CMP |
| Impedance | 100±15%Ω (Frequency: 250MHZ) |
| Reference Standard | ISO/IEC 11081 ANSI/TIA/EIA-568B UL444 |
Reference Standards
GB/T 18015, ISO/IEC 11801, IEC 61156-5, EN 50173-1, EN 50173-2, EN 50288-3-1, TIA-568-2.D, IEC 60332-1-1, IEC 60332-1-2, IEC 60754-2, IEC 61034-1, IEC 61034-2, UL444, UL1581, UL1666
For more information and pricing, please contact us via the form below.
