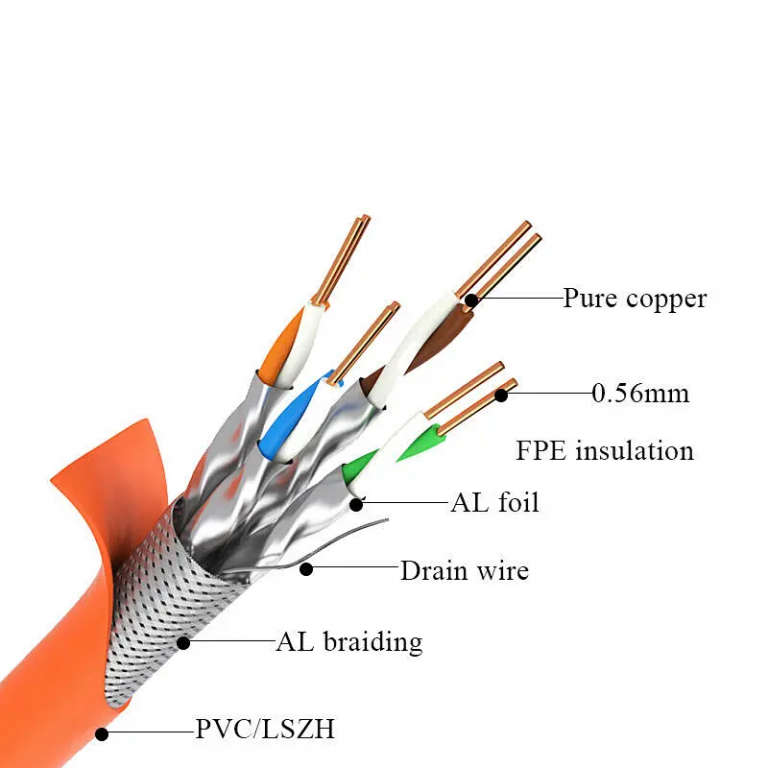

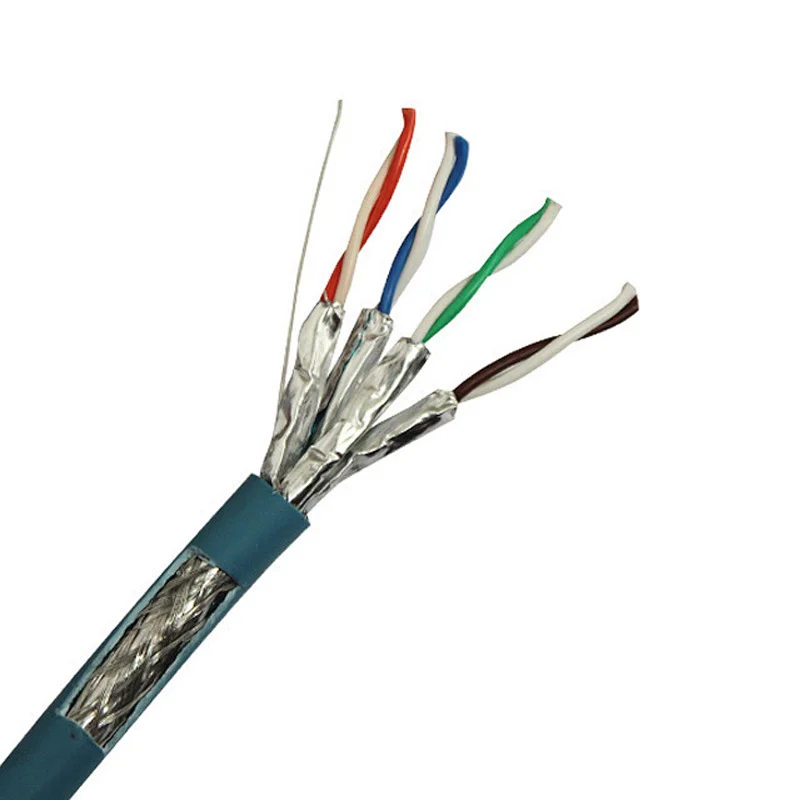

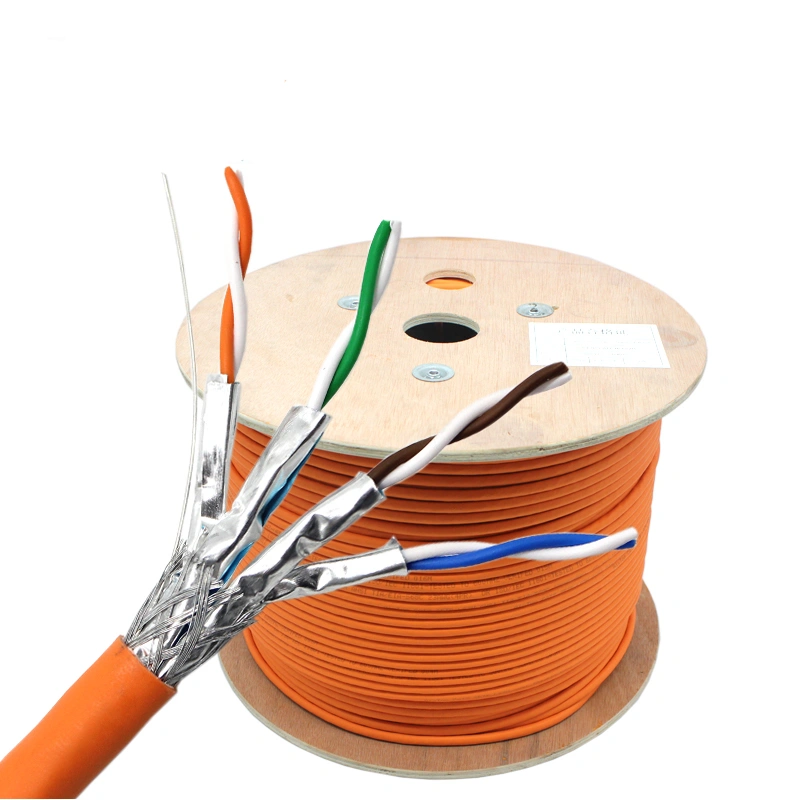

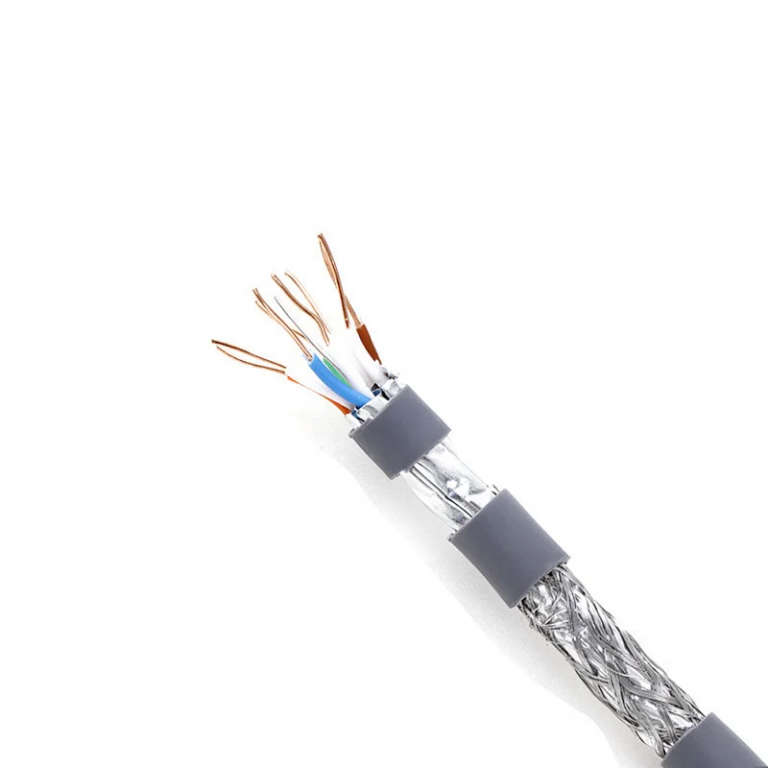

The Cat7 ethernet cable supports a frequency range of 1–600 MHz over 100 meters of fully shielded twisted-pair cabling. It encompasses four individually shielded pairs inside an overall shield and can support up to 10GBASE-T transmissions. With Cat7 cable, each twisted pair is enclosed in foil and then all four pairs are encased in an overall metal braid or foil.
Cat7 cable is backwards compatible with traditional CAT6 and CAT5 cable, but it has far more stringent specifications for crosstalk and system noise. The fully shielded cable virtually eliminates crosstalk between the pairs. In addition, the cable is noise resistant, which makes the Cat7 cable ideal for high EMI areas, such as industrial and medical imaging facilities. Cat7 cable can also increase security by preventing the emission of data signals from the cable to nearby areas.
Features
- Fast and reliable connection
- Twisted pairs with bright color for easy recognition
- Ripcord and foot-mark for convenient use
- Smooth jacket for easy pulling in tight space
- Multiple colours available
Applications
- Computer network cabling
- Broadband network communication
- Digital ISDN and ATM 155Mbps network
- Ethernet network
- Audio and data transmission
Specifications
| CAT7 SFTP CABLE | |
| Structure | 4P Twisted Pair + Drain Wire |
| Conductor | Solid or Stranded Bare Copper/CCA |
| Conductor Size | 23AWG (24AWG Available) |
| Insulation | HD-PE |
| Shielded | AL-Foil as pair + AL-Foil + Braid Coverage |
| Jacket: | PVC or LSZH (Rated Temperature: -20℃-75℃) |
| Flame Retardancy Standard | CM CMR CMP |
| Impedance | 100±15%Ω (Frequency: 250MHZ) |
| Reference Standard | ISO/IEC 11081 ANSI/TIA/EIA-568B UL444 |
| MECHANICAL PARAMETERS | |
| Tensile strength before aging | ≥13.5Mpa (PVC), ≥10.0Mpa (LSZH low smoke halogen-free) |
| Elongation before aging | ≥150% (PVC), ≥125% (LSZH low smoke halogen-free) |
| Aging time | 100℃ × 24 hours × 7 days |
| Tensile strength after aging | ≥12.5Mpa (PVC), ≥8Mpa (LSZH low smoke halogen-free) |
| Elongation after aging | ≥125% (PVC), ≥100% (LSZH low smoke halogen-free) |
| Cold Bending (-20 ± 2 ℃ × 4 hours) | 8 times the outer diameter of the cable without cracking |
| ELECTRICAL PARAMETERS | |
| Transmission delay difference | ≤25ns / 100m |
| Transmission speed | 74% |
| Unbalanced capacitance to ground | maximum 330pf / 100m |
| DC resistance | Maximum 9.5Ω / 100m |
| DC resistance unbalance | max 2% |
Reference Standards
UL444, UL1581, UL1666, IEC60332-1, IEC60332-3-24, EN50399
Test Standards
ISO / IEC11801 , IEC61156-5
For more information and pricing, please contact us via the form below.
