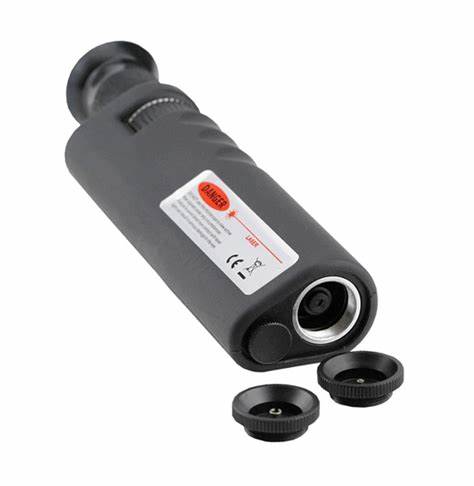

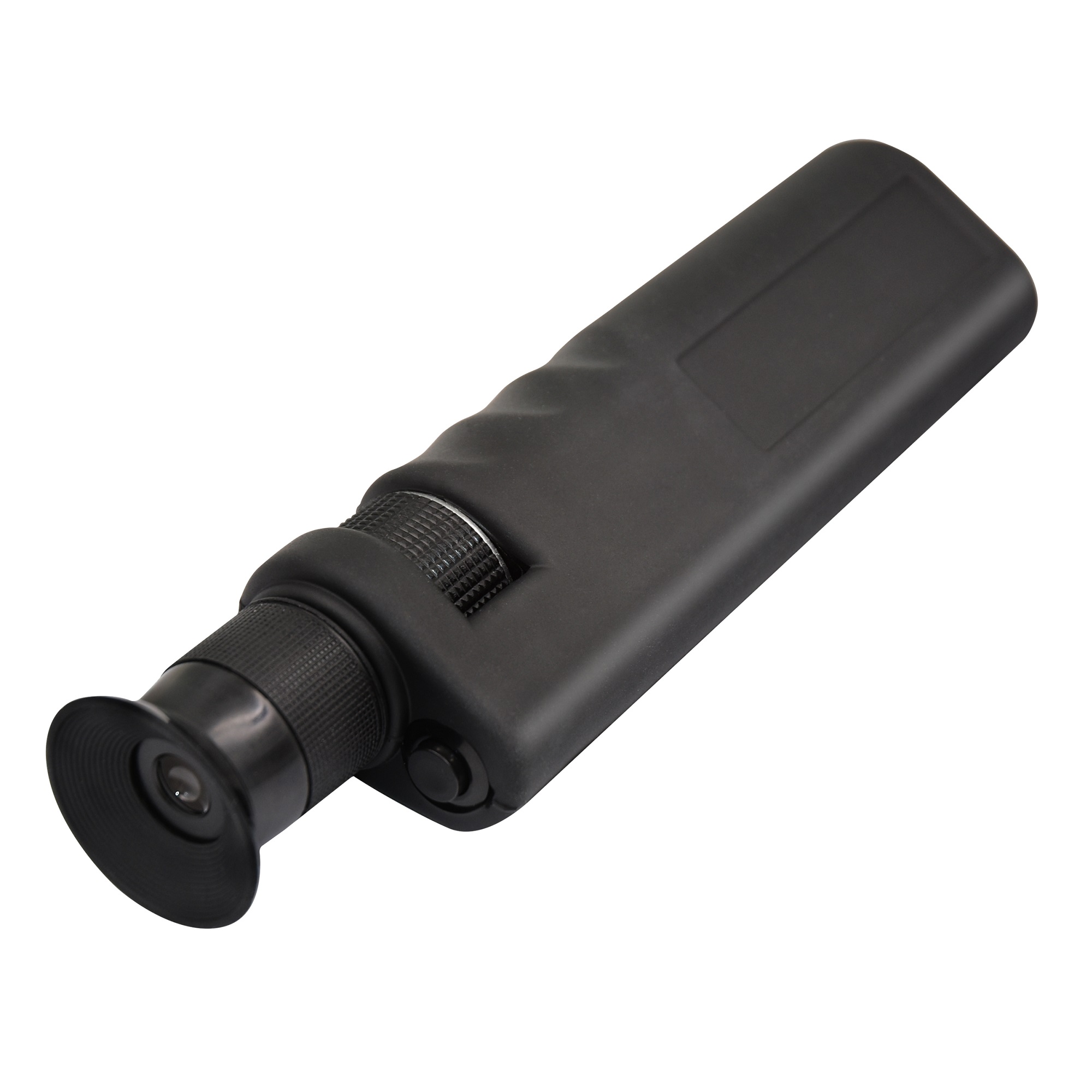

Digital Fibre Optic Inspection Microscope
£74.99
400 times magnification fibre optic inspection microscope suitable for 2.5mm and 1.25mm connectors
Delivery in 1-3 weeks
This 400 times magnification fibre optic inspection microscope is used for inspecting fibre terminations, allowing the user to see that the connector faces are clean. It produces excellent resolution showing any scratches contamination that may be present. The microscope also includes integrated laser safety filters for additional protection.
This microscope is a great choice for a mobile, lightweight device that can be used to inspect the connector polish quality. The microscope als has a built-in LED for easy examination and inspection.
The pre-installed 2.5 mm universal connectors is compatible with SC, FC, ST and E2000 connectors and a 1.25mm adapter is supplied to for use with LC and MU connectors.

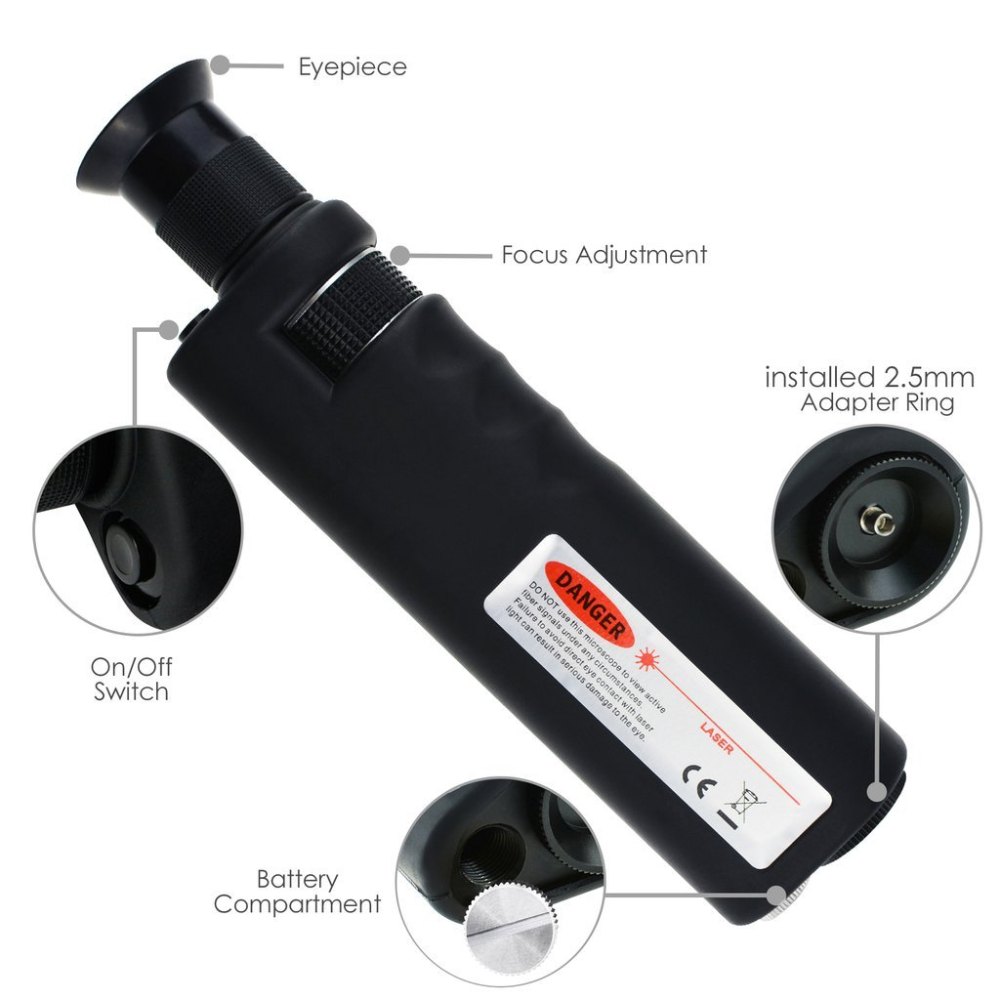

Features
- LED illumination
- Clear bright images
- Smooth focus control
- On/off switch
- Laser filter installed
- CE & UKNA approved
- suitable for 2.5mm and 1.25mm connectors (1.25mm via supplied adapter)
For bulk pricing, customisations, or more details, please get in touch via the form below.
